Coal Mine Methane Gas Cooling System
Project Overview
Fluid Dynamics delivered a methane gas cooling solution for a major Australian coal mining operation, featuring two large-scale compressed gas coolers that prioritise safety and performance in hazardous gas handling. This technically sophisticated project required an innovative approach to manage high gas velocities, eliminate leakage risks in flammable gas service and control condensation—all while meeting Australian industry standards for pressure vessel design and fabrication.
Technical Challenge
The client required a robust cooling system for methane gas from coal mining operations, presenting several critical engineering challenges:
- Safe handling of highly flammable methane gas
- Full compliance with Australian pressure vessel standards
- Management of solid particles and elevated moisture content in the gas stream
- Mitigation of corrosion risks in a demanding environment
- Operation under stringent conditions requiring high gas flow rates with minimal pressure drop
- Effective condensation management
Engineering Solution

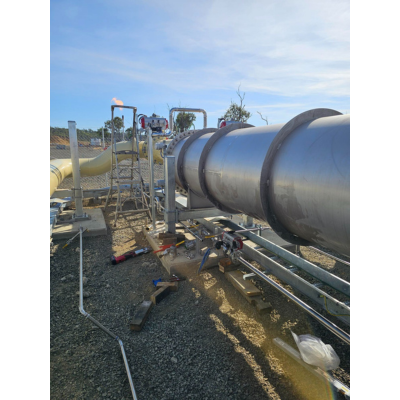

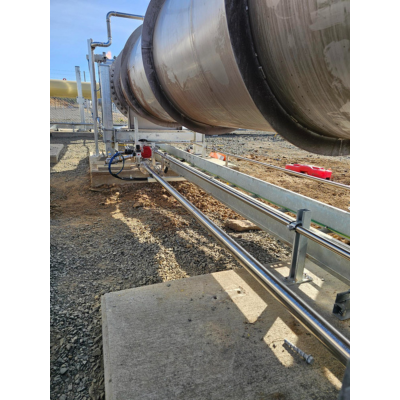

Fluid Dynamics delivered an innovative compressed gas cooler system featuring finned coil bundles housed within heavy-duty stainless steel pressure vessels. The design philosophy required minimizing potential leak points by fully enclosing the coil assembly within a protective shell—a configuration that significantly enhanced safety when handling combustible gases while minimizing corrosion risk.
Each shell and coil cooler unit delivered impressive performance and was capable of cooling 1.4 tons of methane gas per hour by 90°C. The finned coil cooling element maximized heat transfer efficiency through an extended surface area, while the heavy-duty construction was specifically engineered to withstand the abrasive effects of entrained solid particles and the elevated gas velocities inherent to this compact design configuration.
Performance Verification: Comprehensive thermal modelling was conducted using ASPEN Exchanger Design & Rating software across multiple gas composition scenarios, including 100% methane and various component mixtures, ensuring reliable performance prediction and design validation.
Standards Compliance and Quality Assurance
The project was executed with rigorous adherence to Australian standards and industry best practices. The design was independently verified to AS1210-2010 with the entire fabrication process being evaluated and approved by third-party inspection authorities.
Testing and Verification Program
A comprehensive testing regime was implemented to ensure system integrity and safety:
- Cooling Coil Testing: Hydrostatic pressure testing conducted to verify structural integrity
- Pressure Vessel Testing: Gas integrity testing performed using a 5% hydrogen and 95% nitrogen tracer gas mixture to detect any potential leakage paths
- Mechanical Load Testing: Coil extraction forces tested and certified to ensure safe maintenance and serviceability
Project Outcome
This project exemplifies Fluid Dynamics’ capability to deliver engineered solutions for demanding industrial gas cooling applications. The innovative design approach—housing finned coils within sealed shell assemblies—provided superior leak containment compared to conventional open-frame heat exchanger configurations, while maintaining full compliance with all applicable Australian standards for pressure vessel design and fabrication.
The successful completion of hydrostatic testing, gas leak detection protocols, and independent mechanical load testing verified the integrity and safety of the installed systems. These comprehensive quality assurance measures ensure reliable, long-term operation in the challenging environment of coal mine methane extraction operations.
Our happy customer advised us the units performed better than they had expected and that they were confident the units will be more than capable of handling full operation when they are fully put on line, with more orders to come.
Fluid Dynamics, the Heat Exchange Specialists, for all your heat exchanger needs
Advice • Design • Manufacture • Refurbishment • Repair • Service
